Arctic UltraFreezer

Arctic UltraFreezer – reliable ultra cold freezer for rent

Polar-level freezing down to -103°F for vaccines and high-value fish – and for testing components to their limit.
Talk to a cold storage expert
Call us on: 971 303 4541 Weekdays from 8am to 5pm. Talk to a cold storage expert
Arctic UltraFreezer

Key features

  • U_KeyFeatures_Easy-opening-and-closing-doors_UltraFreezer
    Access
    Easy opening and closing doors
    Speed up loading and unloading your goods with doors engineered for smooth, efficient, one-handed operation.
  • key-features-energy-saving-220V-LED-internal-lighting
    Energy-efficient
    Energy-saving 220V LED internal lighting
    Pre-fitted across all UltraFreezer units to eliminate dark corners and reduce trip hazards. Low voltage keeps power costs down.
  • U_KeyFeatures_Doublecompressor_UltraFreezer
    Powerful
    Double compressors for extreme cooling
    UltraFreezers pack more power than standard reefers – and reward you with some of the coldest temperatures on Earth.
  • A_KeyFeatures_Escape_hatcb_release_ArcticStore
    Safety
    Internal door release, escape hatch & alarm
    UltraFreezers come with a range of safety features to protect personnel and minimise risk.
  • A_KeyFeatures_INSULATIONV2_ArcticStore
    Insulation
    High insulation and low air leakage
    Precision engineering helps you save on energy costs by keeping ice-cold air locked in – and external heat out.
  • A_KeyFeatures_Temperature_ArcticStore
    Control
    Choose any temperature from -75°C to -10°C
    Whatever goods you are freezing, Arctic UltraFreezer supports even the most extreme cold-storage needs.
Arctic UltraFreezer

Specifications

20ft
40ft

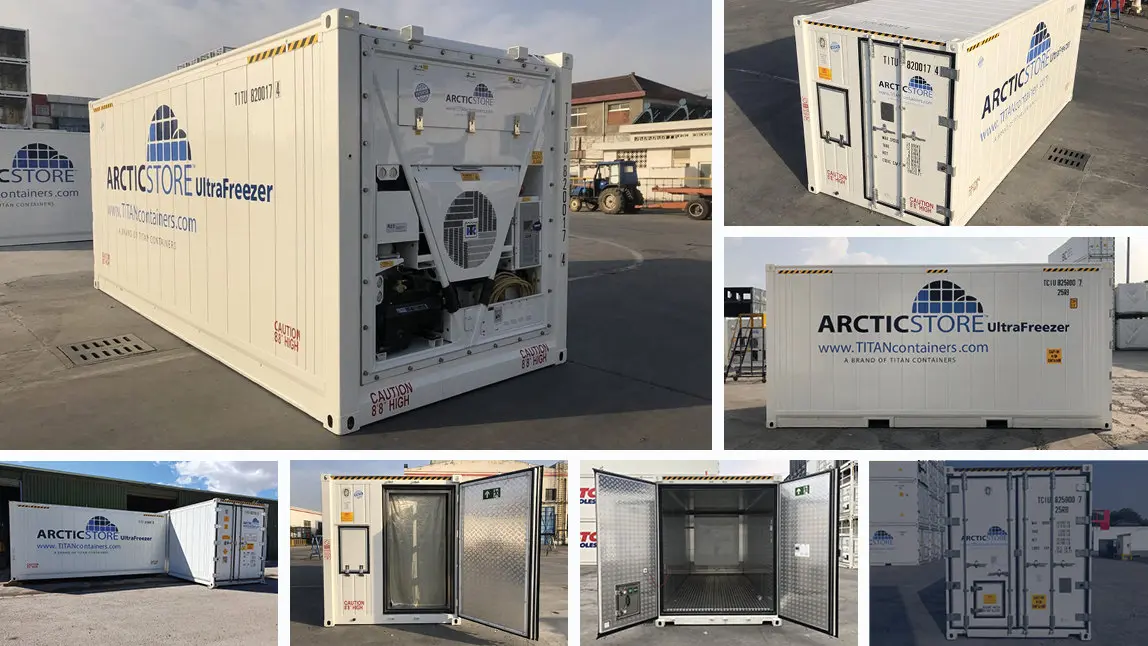

ArcticStore UltraFreezer Cold Storage - Refrigerated Containers

Certificates

  • ISO Certification 9001
  • ISO Certification 14001 TITAN Containers
  • CE Certification TITAN Containers
  • HACCP Certificate
  • Good Distribution Practice Certificate
  • NPSA

Weight & capacity

  • Tare weight
    4,500kg
    8,818.5lb
  • Floor area
    10.72m²
    115.4ft²
  • Capacity
    24m³
    847.6ft³
  • Standard Euro pallets 10

All measurements should be used as a guide. Small variations can and do apply.

External dimensions

  • Length
    6.06m
    20ft
  • Width
    2.44m
    8ft
  • Height
    2.64m
    8.8ft

All measurements should be used as a guide. Small variations can and do apply.

Internal dimensions

  • Length
    5.23m
    17.1ft
  • Width
    2.05m
    6.7ft
  • Height
    2.24m
    7.3ft
  • Door height
    2.25m
    7.4ft

All measurements should be used as a guide. Small variations can and do apply.

Suitable for several sectors

  • High-value tuna storage & transport — delivering the catch with top quality and value
  • Vaccines and bio/life science products & applications

Power plug details

  • 480 Volt, 32 Amp, 3 phase, 4-pin plug female (missing neutral)

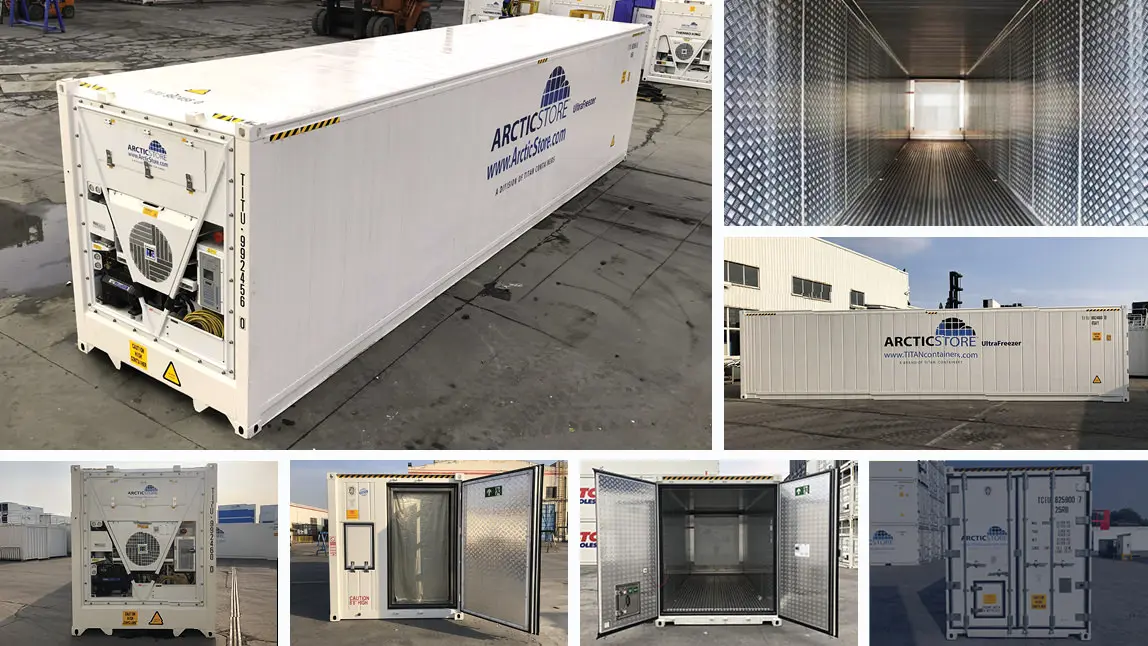

ArcticStore UltraFreezer Cold Storage - Refrigerated Containers

Certificates

  • ISO Certification 9001
  • ISO Certification 14001 TITAN Containers
  • CE Certification TITAN Containers
  • HACCP Certificate
  • Good Distribution Practice Certificate
  • NPSA

Weight & capacity

  • Tare weight
    5,890kg
    12,985.2lb
  • Floor area
    25.41m²
    273.5ft²
  • Capacity
    63.27m³
    2,234.4ft³
  • Standard Euro pallets 22

All measurements should be used as a guide. Small variations can and do apply.

External dimensions

  • Length
    12.19m
    40ft
  • Width
    2.44m
    8ft
  • Height
    2.90m
    9.6ft

All measurements should be used as a guide. Small variations can and do apply.

Internal dimensions

  • Length
    11.55m
    37.9ft
  • Width
    2.20m
    7.2ft
  • Height
    2.49m
    8.2ft
  • Door height
    2.56m
    8.4ft

All measurements should be used as a guide. Small variations can and do apply.

Suitable for several sectors

  • High-value tuna storage & transport — delivering the catch with top quality and value
  • Vaccines and bio/life science products & applications

Power plug details

  • 480 Volt, 32 Amp, 3 phase, 4-pin plug female (missing neutral)

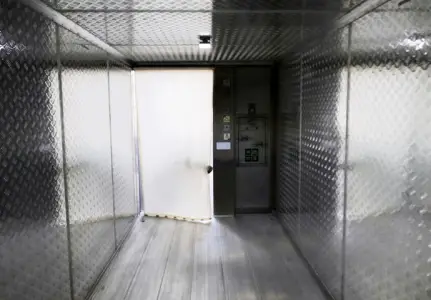

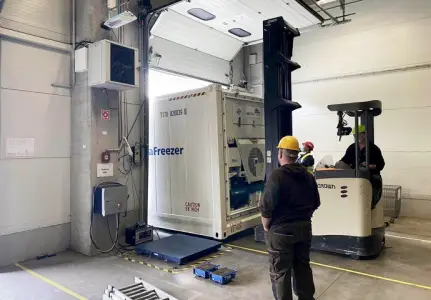

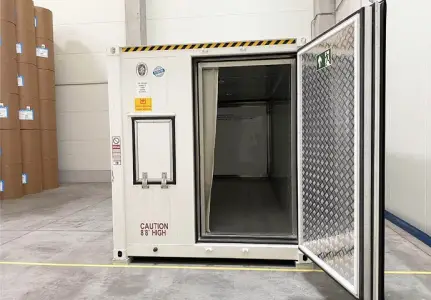

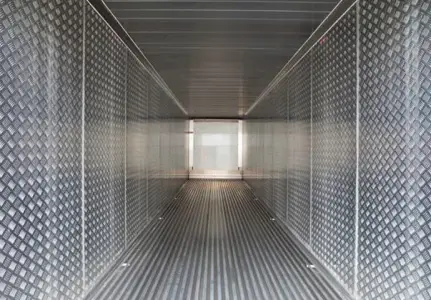

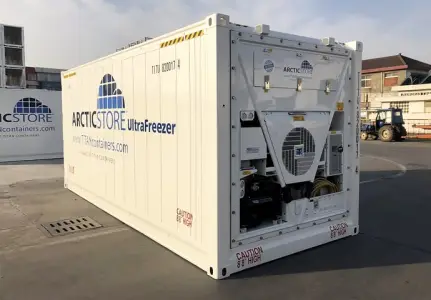

Arctic Ultrafreezer Cold Storage - Ultra Low Temperatures - Refrigerated Containers for Hire
Arctic UltraFreezer

Sub-Polar temperatures for storage, R&D and testing

The average annual temperature at the South Pole is -56°F – a thermometer reading beyond which few living things can survive.

If you want to go colder, the answer is the Arctic UltraFreezer from TITAN Containers.

Our supreme cold storage solution can drop temperatures to an other-worldly -103°F, which puts it in a very rare category of super-freezers that make the storage of vaccines, organic cultures and high-value fish such as tuna easy.

Available in 20ft and 40ft container sizes, this powerful chiller is also the obvious choice when testing the performance of important parts and components at extreme temperatures – as is often required in the aviation, auto and technology sectors.

Request a quote

Arctic UltraFreezer

Accessories

  • Support-Legs-Container-Accessories
    Support Legs
    Easily support 10ft, 20ft or 40ft containers at loading bay height.
    See more
  • SmartArctic-Sophisticated-Cold-Storage-Remote-Monitoring
    SmartArctic
    Control ArcticStore cold storage remotely with ease.
    See more
  • Container-Ramps-Container-Accessories
    Ramps
    Wide selection to facilitate easy loading/unloading.
    See more
  • Acoustic Cabins – Container Accessories
    Acoustic Cabins
    Reduce DB emissions for permitted 24/7 use in all areas.
    See more
Pallets

Pallet footprint guide for arctic UltraFreezer

Packing your Arctic UltraFreezer containers needs care and precision to maximise the available space. This guide will help you quickly see what’s possible.

8 US Pallets in a 20ft UltraFreezer
8 US Pallets in a 20ft UltraFreezer
See more
18 US Pallets in a 40ft UltraFreezer
18 US Pallets in a 40ft UltraFreezer
See more

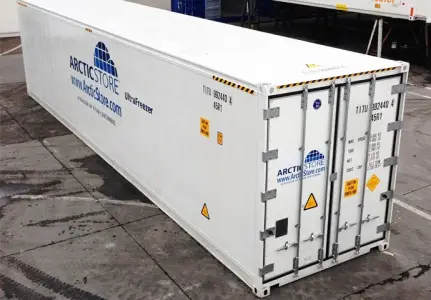

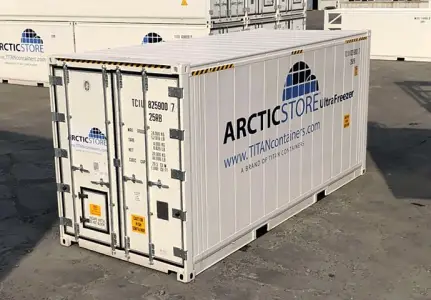

Arctic Ultrafreezer Cold Storage - Ultra Low Temperatures - Refrigerated Containers for Hire

Just like our famous ArcticStore – but colder!

The UltraFreezer may look like our standard ArcticStore cooler, but double compressors help to chill temperatures well below -40°F, while other key features, such as additional insulation and an entirely remodeled door, minimize air leakage.

Whenever you need to rent reefer storage at lower than -40°F, TITAN’s Arctic UltraFreezer is the answer. And with 40+ rental centers across the US and Canada – including major destinations like NYC, Los Angeles, Miami, Denver and Vancouver – we can rapidly provide you with the extreme portable cold store temperatures you need.

TITAN is one of North America’s leading providers of cold storage solutions and is certified by all relevant organizations. For further details and full specifications of our Arctic UltraFreezer, please see our latest brochure.

Request a quote

Case Studies

Cold storage case studies

Real solutions for real challenges across different industries.

Sonoco Case Study | TITAN Containers

Reliable ‘plug and play’ solution helps Sonoco to thrive

American multinational Sonoco is arguably the world’s best-known packaging company. For the launch of their new thermal packaging service, they gave TITAN a call.
See case study
Tesco – Cold Storage. Refrigerated Containers

How Tesco aced Christmas with a little help from TITAN

Tesco are one of TITAN UK's best clients. While we keep their goods chilled year round, they needed our cold storage solutions more than ever in the run-up to December 25th.
See case study
Heathrow Airport SuperStore Install – Cold Storage Solutions

A TITAN cold storage ‘warehouse’ to store food safely at Heathrow

When a client based at London's busiest airport needed extra cold storage after landing a new contract, TITAN’s modular Arctic SuperStore was the ideal solution.
See case study
SmartArctic – Cold Storage. Refrigerated Containers For Hire
Remote Monitoring

Need total control, 24/7? Our SmartArctic platform was built for that

When an Arctic UltraFreezer is filled with tuna or vaccines, the value of your chiller container can be in the hundreds of thousands of dollars or more.

With such valuable stock to watch over, it makes sense to equip yourself with the best possible method of monitoring and controlling the temperature in your cold storage unit – which is where our SmartArctic platform comes in.

Standard on all ArcticStore reefer units, SmartArctic is an easy-to-use platform that can be accessed via smartphone or PC and provides total control of any ArcticStore containers, including the UltraFreezer, within your cold storage network.

SmartArctic enables you to make temperature set point changes, initiate defrost, check performance and status, view log files and much more.

This can be achieved from anywhere in the world – meaning easy, secure control of your cold store system 24/7, wherever you are. SmartArctic helps you chill with complete confidence.

Discover SmartArctic

Want to buy cold storage solutions from TITAN?

While many customers prefer to rent their freezer containers from us, we also sell cold storage solutions from across our entire collection. If you are looking to buy cold storage from us, please just get in touch with our cooler experts, and we’ll explain what we can do for you.
